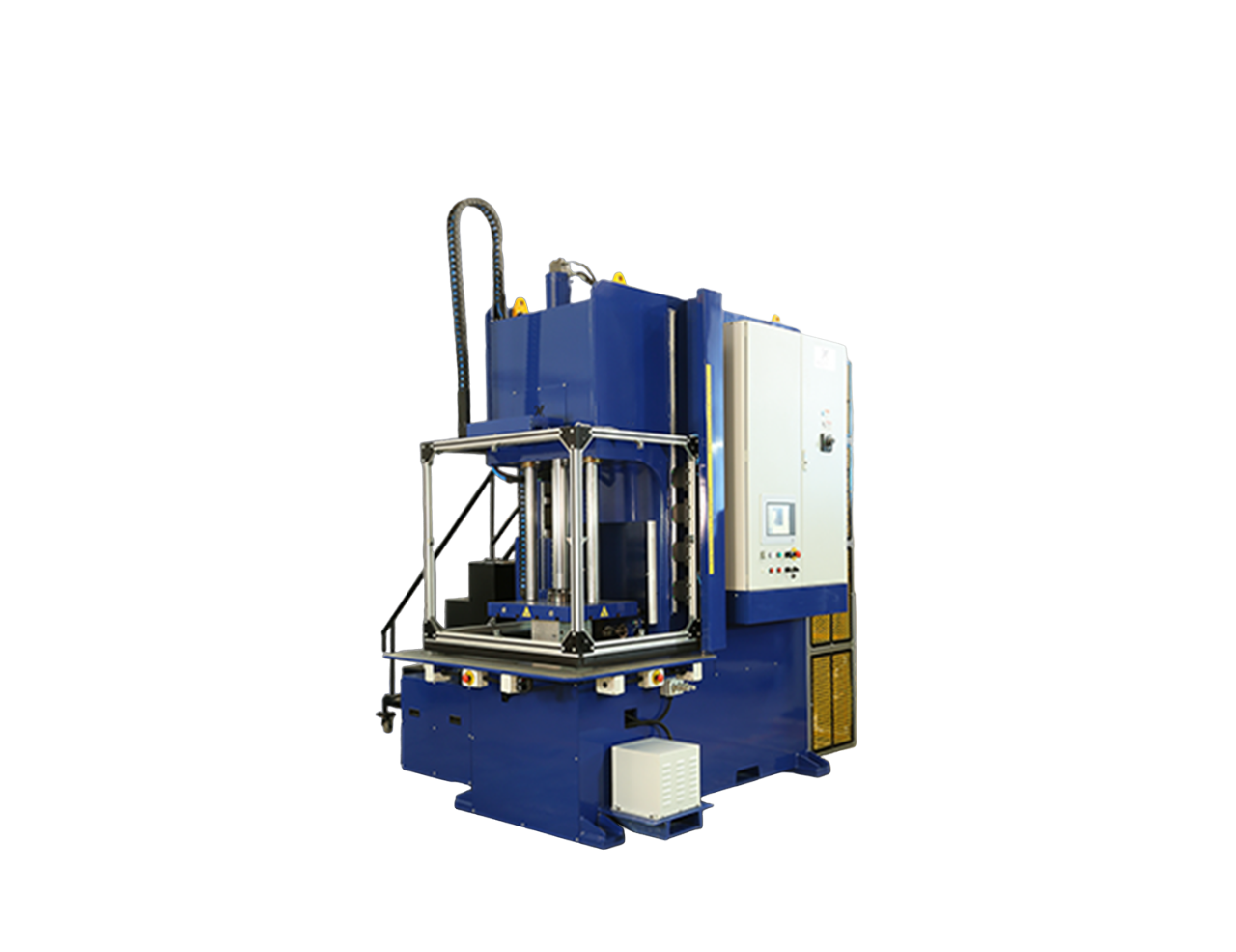

C-Frame Ceramic Injector
Ceramic injection machines are unique and Modtech has made many of these machines for its customers in the Ceramic Core making industry. Modtech C frame Ceramic injectors are well accepted for their proven injection system.
Salient Features
- Full recirculation of ceramic material from tank to nozzle tips
- Specific purpose injection System
- Machine built for continual and long-life operation
- Quick seal replacement
- Tank and injection system move together
- Push button ceramic purge facility
- Heavy duty tank and agitator
- Hardened parts
- Unique heat zone design to minimize heat loss
- Modular digital servo hydraulics
- CE marked guards and electrical
- Multiple die mounting options
- Platen cooling channels
- Optional PLCS platen laser centering system
Specific Features
- Platens are turned 90° to enable injection of lengthways cantilever tooling often used for ceramic core production
- Optional Injection Type: Conventional piston-based injection or screw & barrel type injection
- Optional Nozzle Tip Closure: Spring checked valve or cylinder driven pin
Control Systems
- Large touch screen with easy program upload facility
- M-ppek enabled
- Inbuilt modem
- USB connection
- Icon-based control with operator-friendly interaction
- LAN enabled with Remote Machine Access
- 200 die recipe system
- Multi-user password access
- Diagnostics for Electricals /Auto Cycle
- Historical and Dynamic Graphing
- Ceramic level control & indication
- Alarm systems protection
