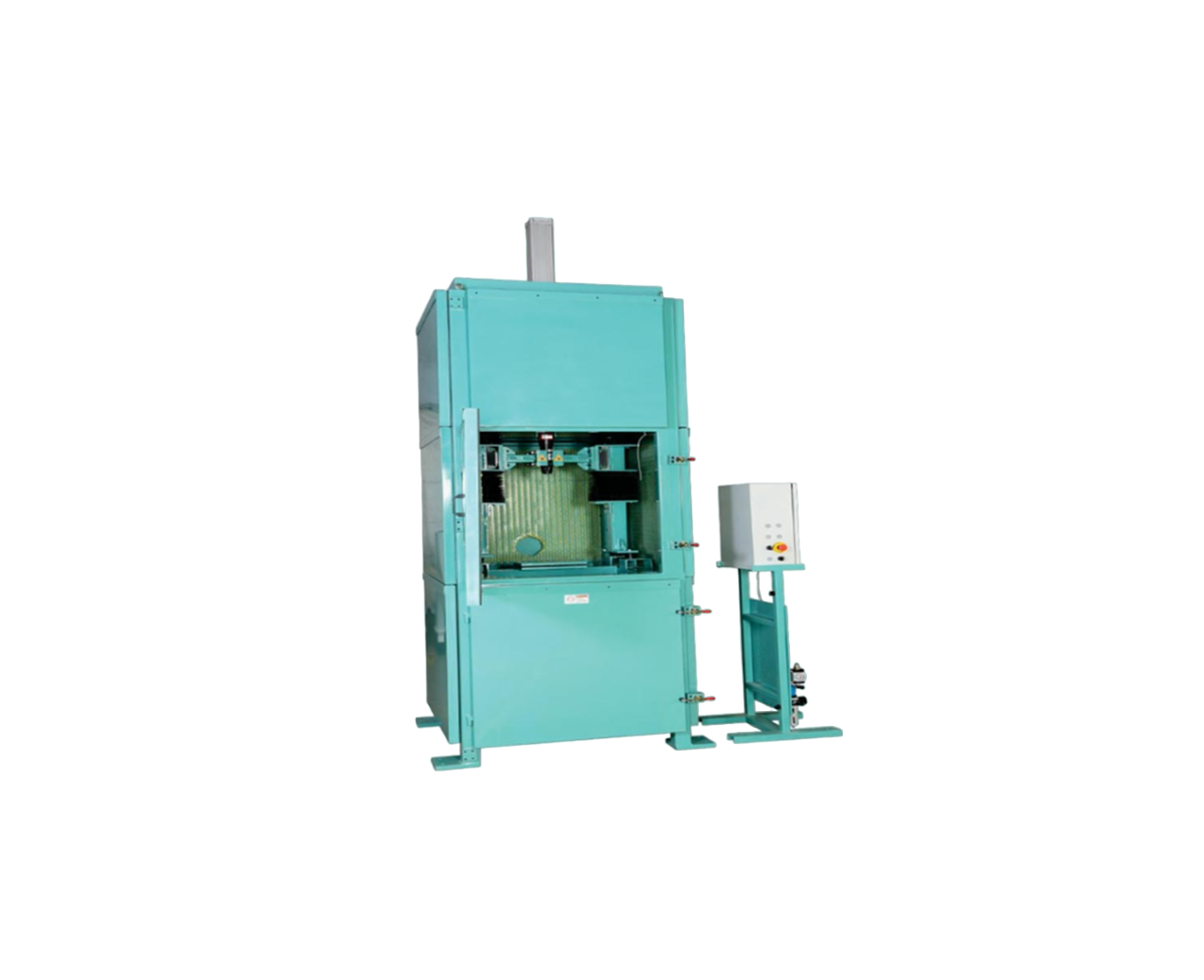

Shell Knock-Off

Shell Knock-Off

Description: Vertical Chipping with downward clamping, Variable Operation Parameters, Pneumatic Hammer

Send Inquiry


Maximum Mould Size: The parameters of the largest mould that can be processed are 700mm High x 400mm Wide x 400mm Deep

Minimum Mould Size: The parameters of the Smallest mould that can be processed are 200mm High x 150mm Wide x 150mm Deep

Maximum Mould Weight: The maximum weight that the machine can take on table of the machine for a single mould is 100 kgs

Operational Noise at 1 Mtr.: No more to 120dBa

Machine Cabinet: Dual skin construction with sound deadening materials observation windows to be Double Thickness Double Glazed

Mould Loading Height: 780mm

Automatic Sequence: Load Mould, Door Close, Push Start Button, Knockout Vibro Hammer Engages with Mould, Hammer Sequence Starts, Hammer Sequence Stops, Open Door.

Clamp System for Hammer: Pneumatic Ram

Clamp Cylinder Stroke: 500mm

Maximum Clamp Force: 200 kg

Hammer Type: Pneumatic Hammer

Number Of Hammers: 1

Hammer Frequency: 1000 BPM with Adjustable Force Control

Hammer Frequency Adjustment: Adjustable Via Pneumatic Valve

Dust Extraction: Included

Pneumatic System Pressure : 7 bar

Electric Load: 1 kva, 13 amps, 380 volts 3 phase 50 hz with neutral and ground.

Pneumatic Requirement: 46 CFM
